BA管ASTM B861 GR2 R50400 3.7035无缝退火管

产品详情:

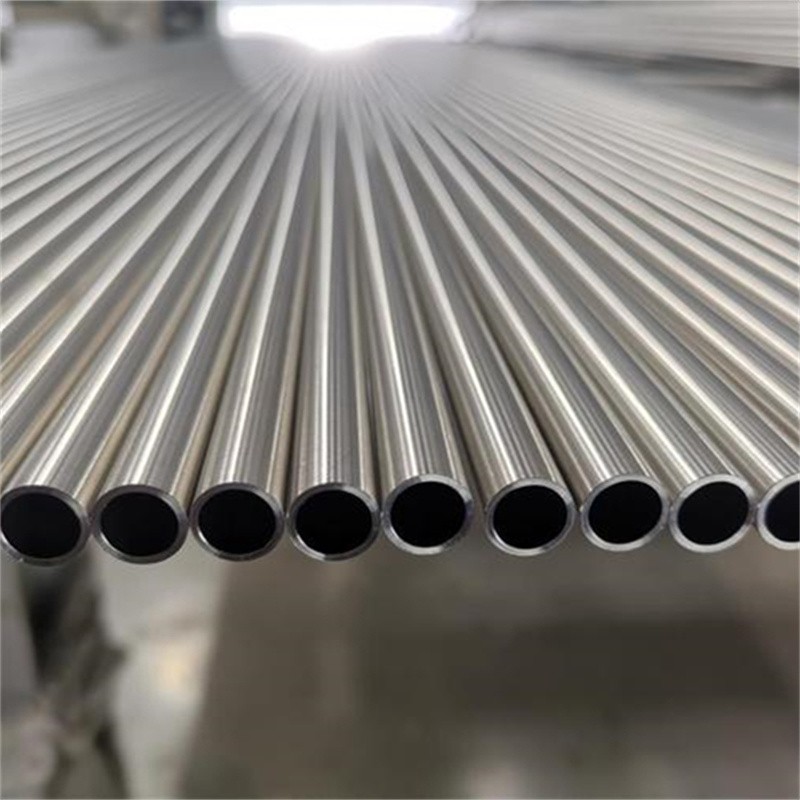

ASTM B861 GR2 R50400 3.7035钛合金无缝退火管

什么是ASTM B861？

本规范涵盖了用于一般耐腐蚀和高温环境的34级钛和钛合金无缝管的要求。

合金可在以下条件下供应：5、23、24、25、29、35或36级，退火或时效；9、18、28或38级，冷加工和应力消除或退火；9、18、23、28或29级，转化β条件；以及19、20或21级，溶液处理或溶液处理和老化。

等级应符合氮、碳、氢、铁、氧、铝、钒、锡、钌、钯、铬、镍、铌、锆、硅和钛所需的化学成分。

特征：

ASTM B861 GR2管道可以很容易地焊接。它还具有优异的强度和延展性。金属的自然强度用于要求极高强度的应用，耐腐蚀性用于耐用电器。

Mechanical Properties of B861 Titanium Grade 2

Grade		ASTM B861 Titanium Grade 2
Tensile Strength(min), Ksi (Mpa)		50 (345)
Yield Strength 0.2% Proof (MPa)	min	40 (275)
Yield Strength 0.2% Proof (MPa)	max	65 (450)
Elongation 2 in. or 50 mm(gage length min %)		20

Equivalent Material of Titanium Grade 2

ASTM B861 Titanium Alloy Pipe Tolerances

SIZE OD, MM (IN.)	TOLERANCES OD, MM (IN.)	WT MIN WALL %
< 25.4 (< 3/8)	±0.102 (0.004)	+20/-0
25.4-38.1 (1-1 1/2)	±0.127 (0.005)	+20/-0

Ti GR 2 Pipe Schedule and Wall Thickness

NOMINAL	O.D. INCHES	10S	10	40S & STD	40	80S & E.H.	80	160
1/8	.405	.049	.049	.068	.068	.095	.095
1/4	.540	.065	.065	.088	.088	.119	.119
3/8	.675	.065	.065	.091	.091	.126	.126
1/2	.840	.083	.083	.109	.109	.147	.147	.187
3/4	1.050	.083	.083	.113	.113	.154	.154	.218
1	1.315	.109	.109	.133	.133	.179	.179	.250
1 1/4	1.660	.109	.109	.140	.140	.191	.191	.250
1 1/2	1.900	.109	.109	.145	.145	.200	.200	.281
2	2.375	.109	.109	.154	.154	.218	.218	.343
2 1/2	2.875	.120	.120	.203	.203	.276	.276	.375
3	3.500	.120	.120	.216	.216	.300	.300	.437
3 1/2	4.000	.120	.120	.226	.226	.318	.318
4	4.500	.120	.120	.237	.237	.337	.337	.531
4 1/2	5.000			.247		.355
5	5.563	.134	.134	.258	.258	.375	.375	.625
6	6.625	.134	.134	.280	.280	.432	.432	.718
7	7.625			.301		.500
8	8.625	.148	.148	.322	.322	.500	.500	.906
9	9.625			.342		.500
10	10.750	.165	.165	.365	.365	.500	.593	1.125
11	11.750			.375		.500
12	12.750	.180	.180	.375	.406	.500	.687	1.312
14	14.000	.188	.250	.375	.437	.500	.750	1.406
16	16.000	.188	.250	.375	.500	.500	.843	1.593
18	18.000	.188	.250	.375	.562	.500	.937	1.781
